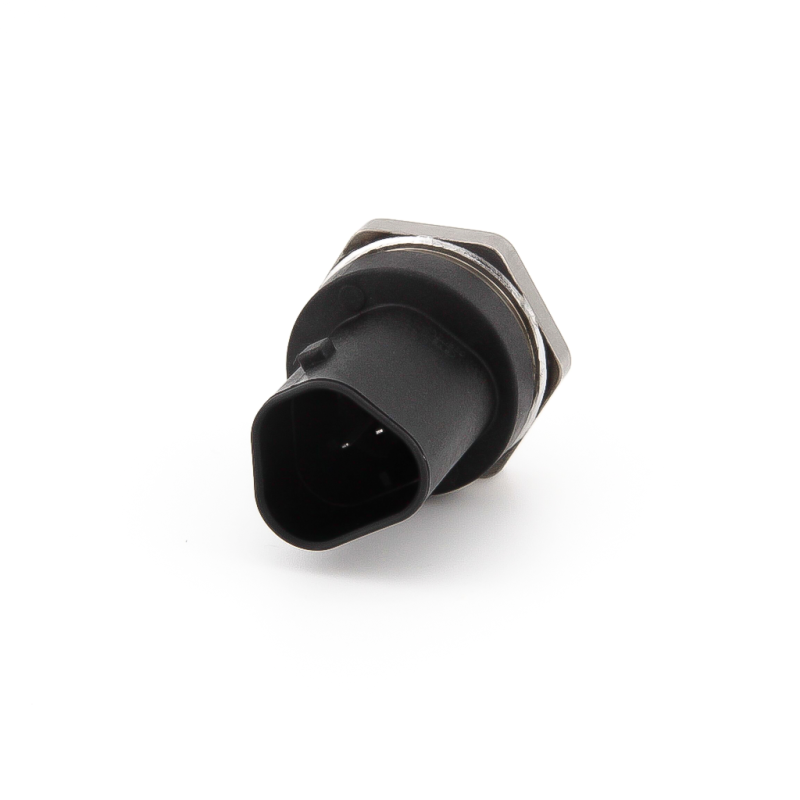

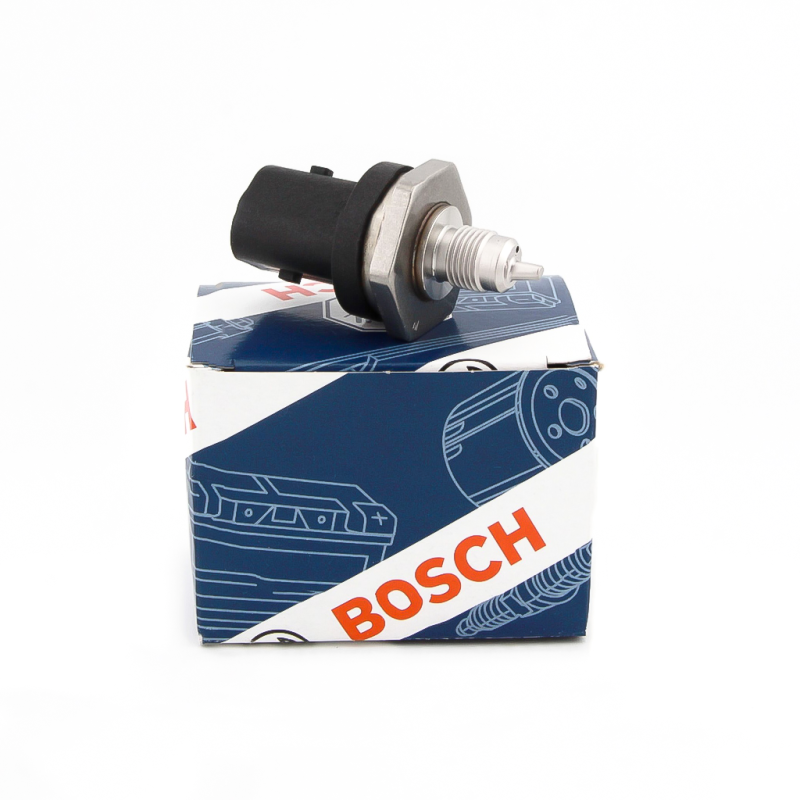

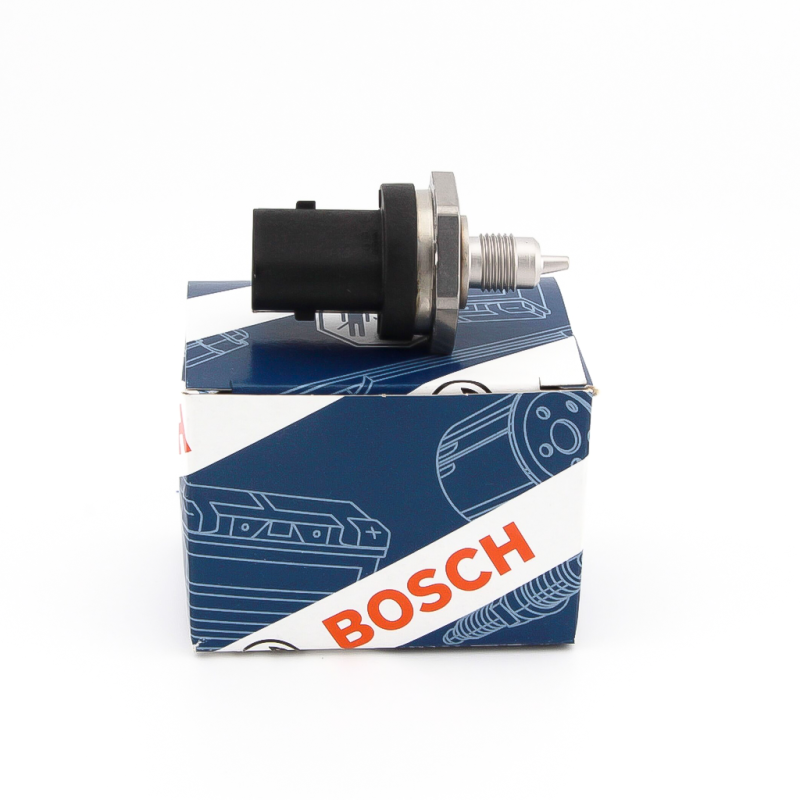

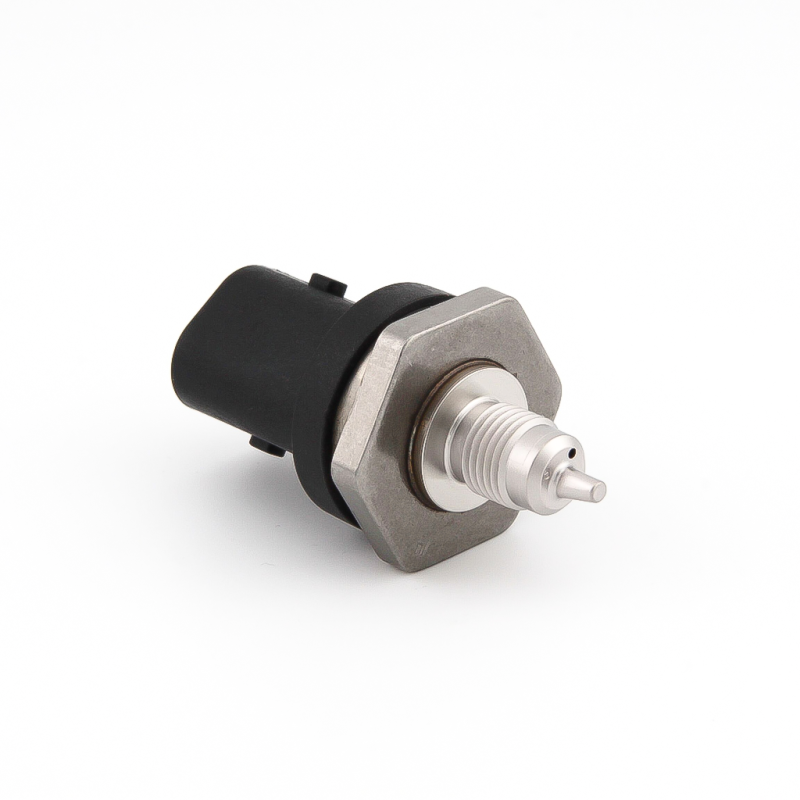

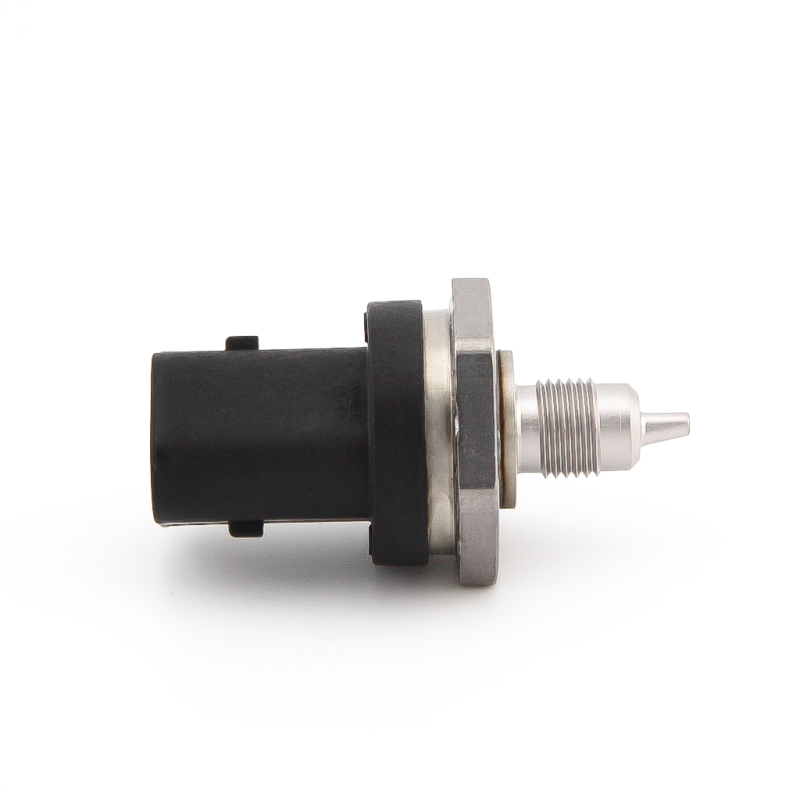

BOSCH Oil/Fuel Pressure and Temperature Sensor 0–10 bar

The sensor combines measurement of fluid pressure 0–10 bar (145 psi) and temperature −40…+140°C in a single housing. Installation is via M10×1 with a 45° cone seal, and it uses a Bosch trapezoidal 5-pin connector (F02U.B00.751-01).

It is well suited for use as a sensor for:

• coolant
• engine oil / transmission oil
• fuels: petrol, diesel, E85

For applications beyond standard media, compatibility verification is recommended (operating conditions, medium type, sealing).

Main features / specification:

• Pressure range: 0–10 bar (145 psi)
• Temperature range: −40…+140°C
• Thread: M10×1
• Sealing: 45° cone
• Connector: Bosch trapezoidal 5-pin (F02U.B00.751-01)
