Standalone ECU Sensor Kit for Turbocharged Engines
€100.00
- New
- Pack

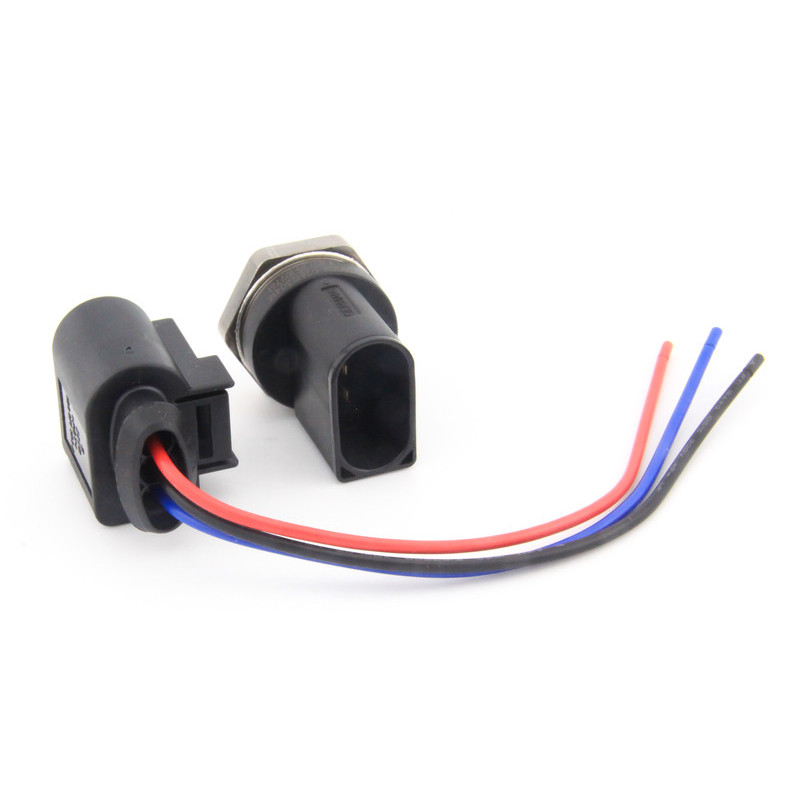

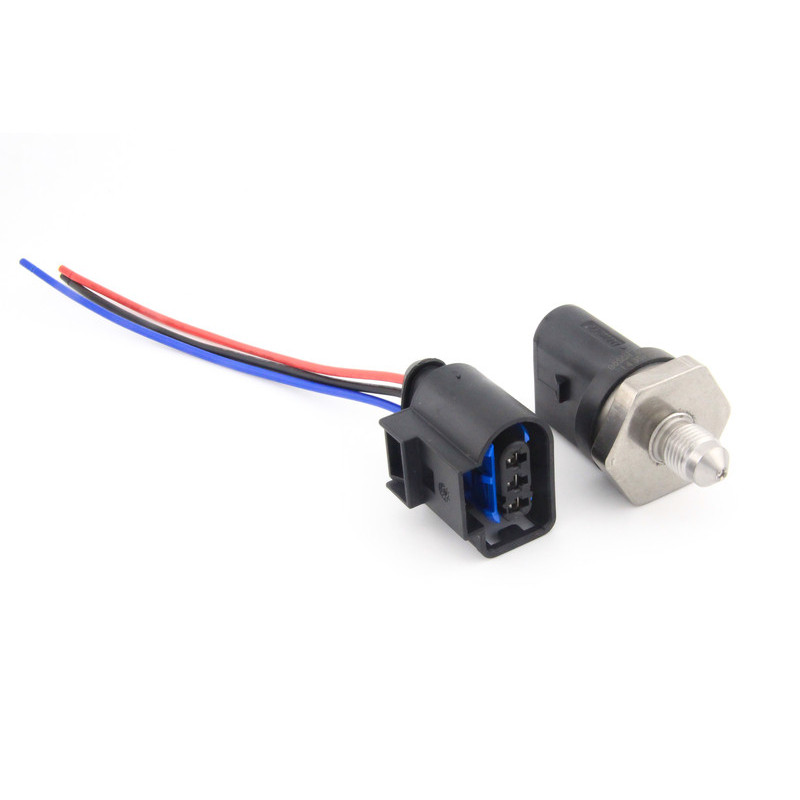

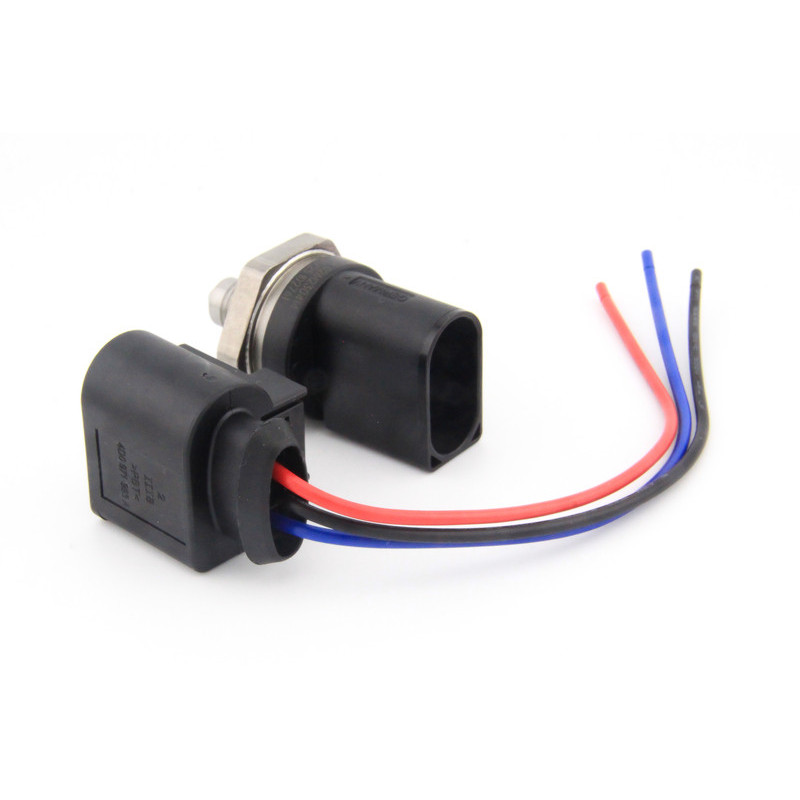

BOSCH 10b pressure sensor with harness
€46.25
Tax included
- Range: 0–10 bar
- Supply voltage: 5 V
- Output: analog (typically scaled as 0.5 V = 0 bar, 4.5 V = 10 bar, linear)
- 3 pins: +5 V / GND / Signal
Delivery rules
Kit for liquid pressure measurement with BOSCH 10 bar sensor and 3PIN 4D0971993 connector in a crimp-only version – pins for self-installation in the wiring harness. Ideal for standalone ECU projects, swaps, custom wiring, and motorsport applications.
Connector variant
- With crimped 15 cm wires – ready-made harness for quick connection
BOSCH Pressure Sensor
For measuring liquid pressure (e.g., fuel or oil, depending on application). Provides a standard analog 0–5 V signal.
- Range: 0–10 bar
- Supply voltage: 5 V
- Output: analog (typically scaled as 0.5 V = 0 bar, 4.5 V = 10 bar, linear)
- 3 pins: +5 V / GND / Signal
Perfect for wiring repairs, building custom harnesses, and tuning or motorsport projects.
